Schneefrässchleuder MONOBLOCK Mobl 110
Snow blower MONOBLOC Mobl 230

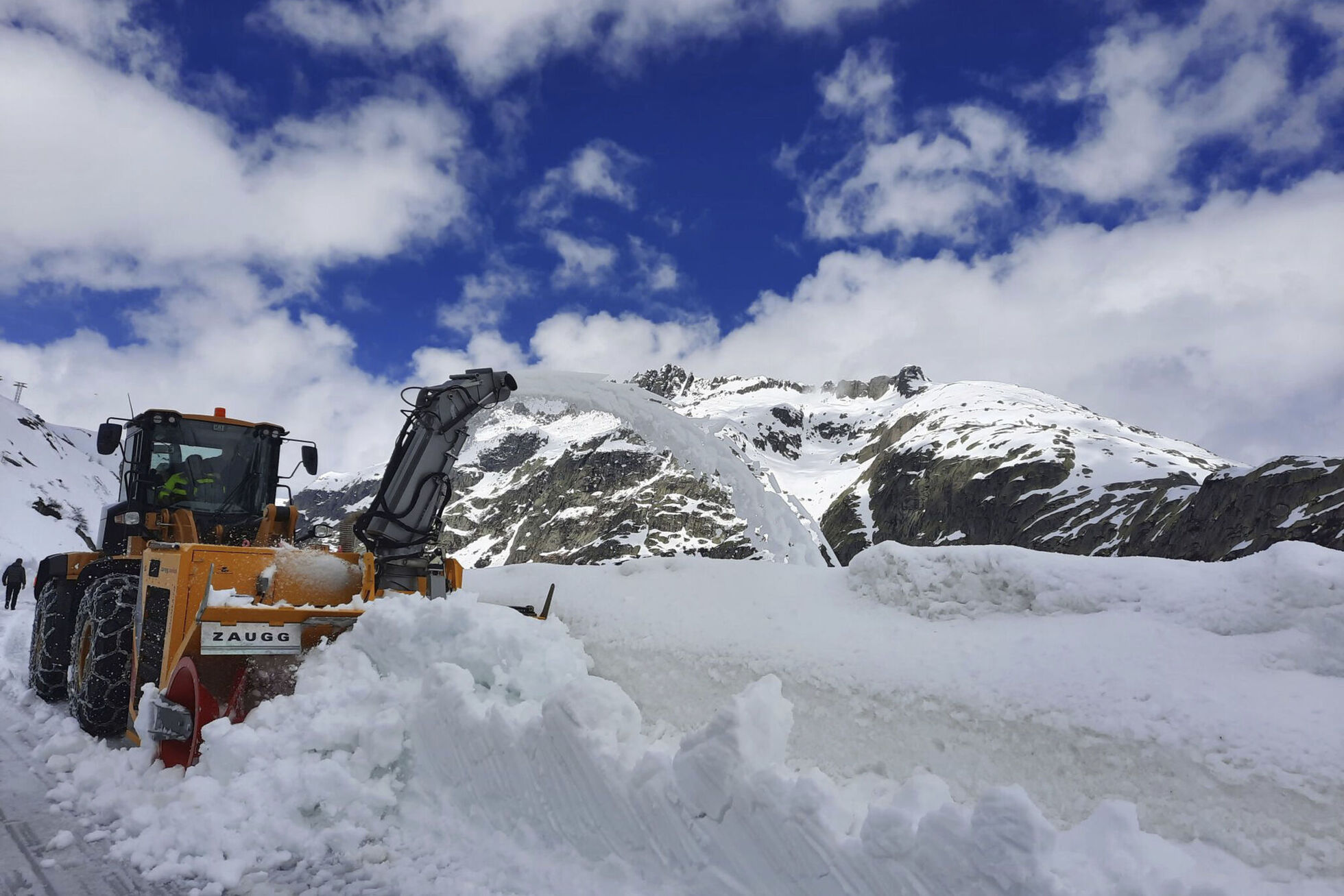

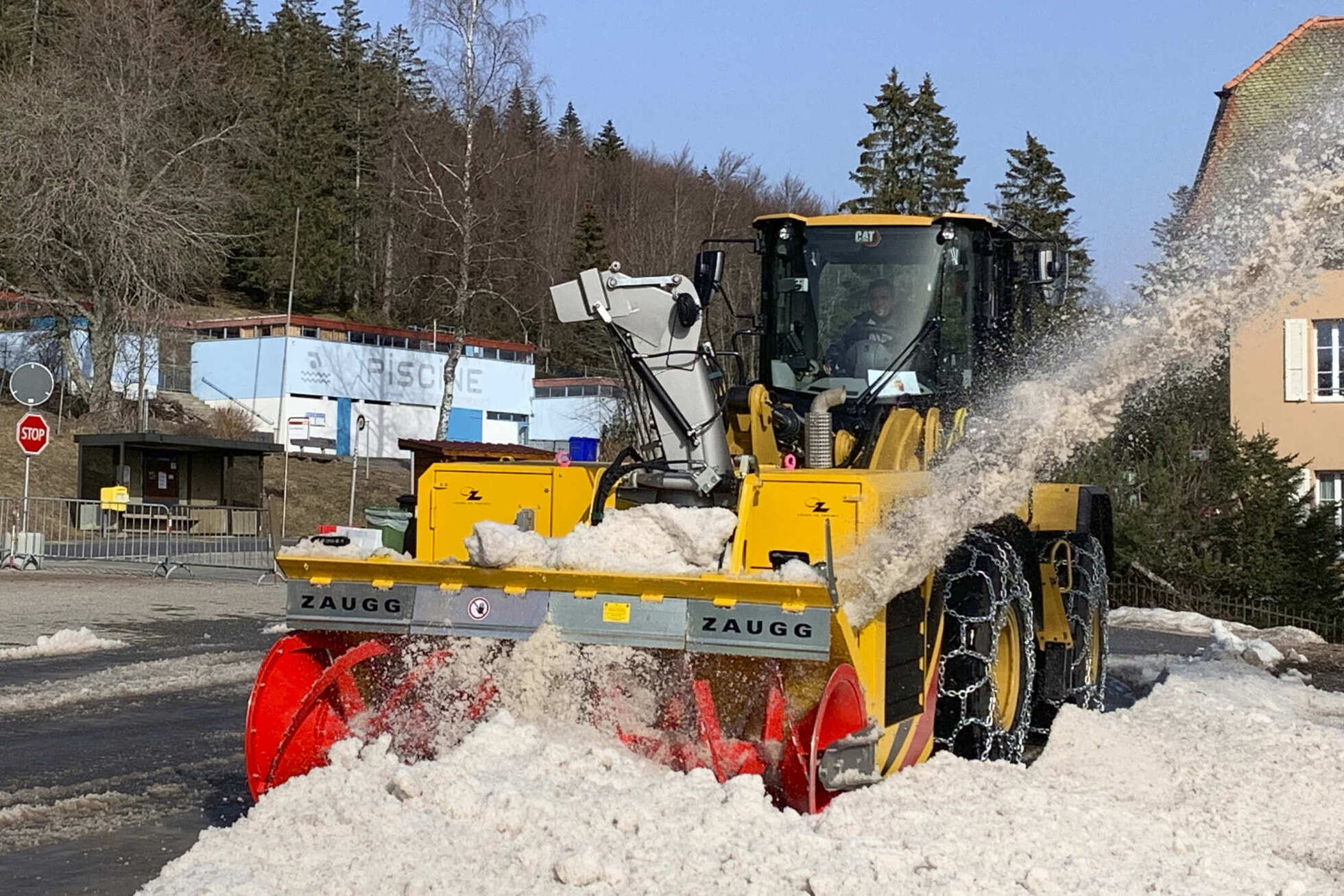

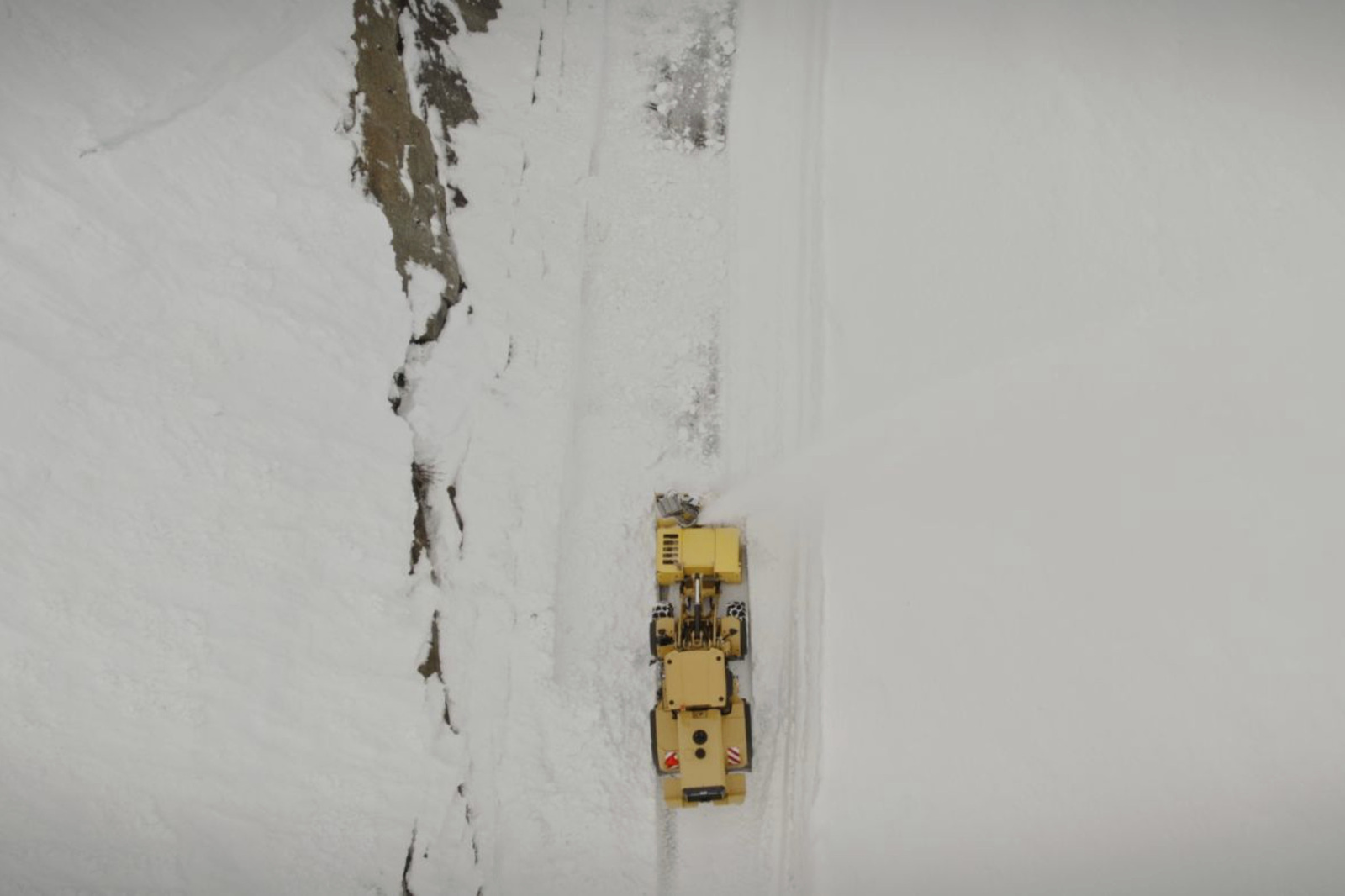

The Monobloc snow blower is autonomous, compact and meets the current Euro stage V exhaust emission standards. The machine can optionally be equipped with a radio remote control or fixed connecting cable and is operated conveniently with the included joystick and display. Wheel loaders that meet the minimum static tipping load requirement are employed as carrier vehicles. Therefore, they can also be used during the winter break. The articulated steering of the wheel loader ensures great mobility, enabling use even in cramped conditions, e.g. in narrow, deep cuttings.

INFORMATION

Output

170 kW / 230 PS

Cutter Type

SF 90-100-L-… HT

x

TECHNICAL SPECIFICATIONS

Monobloc Snow blower Mobl 230 mit SF 90-100-L-… HT
Drive
Engine Mercedes-Benz
Typ OM934LA.E5-1
Exhaust emission standard EU Stage V / US EPA Tier 4
Cylinders 4 in a line (5.13 l cubic capacity)
Output 170 kW (230 PS) / 950 Nm
Diesel fuel tank  145 l
Snow blower unit SF 90-100-L-… HT
Working widths 246 / 260 / 270 / 296 cm
Cleaning height 130 cm
Cutter reels ∅ 90 cm
Impeller ∅ 100 cm
Protection Shear pin coupling / automatic cut-out clutches
Ejection chutes 2-flap / 4-flap / Telescope /
or with a standard revolving impeller casing
Ejection range up to 25 m or 35 m (depending on the snow)
Clearing capacity up to 1700 t/h (depending on the snow)
Weight
Total weight up to 4450 kg (depending on the model)
Necessary static tipping load of the wheel loader
Minimum up to 8200 kg (depending on the ejection)

Send us your enquiry electronically by email or contact us right now by phone: +41 (0)34 491 81 11
